Meters... Volts, Ohms, Power etc... Analog & Digital

small logo

Categories:

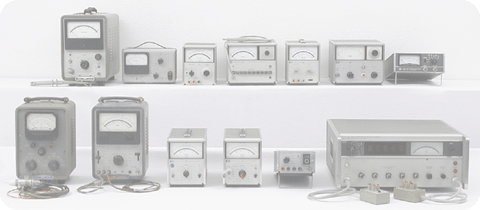

Analog Voltmeters - Multimeters & Calibrators
MODEL RANGE INTRO Pg HP-JRNAL COMMENTS
3400A RF 1963 91 1964 01 True RMS Analog Voltmeter - 10Hz to 10MHz - 100µV to 300V rms in 12 Ranges
3406A UHF 1965 124 1966 07 Sampling RF Voltmeter 1GHz - 1mV to 3V Full Scale
3410A RF 1967 201 1967 05 AC MicroVoltmeter 3uV to 3V FS in 13 Ranges - 5Hz to 600kHz
3420B DC 1966 2 1966 11 DC Differencial Volmeter/Ratiometer 1,1 to 1,100V FS, 0,2 ppm Resolution
342A NOISE 1959 122 1959 02 Noise Figure Meter - From 10 to 600MHz with HP343A VHF Noise Source
343A NOISE 1959 123 1959 02 VHF Noise Source for Use with HP342A Noise Figure Meter - Excess Noise 5,2dB from 10 to 600MHz
400A AC 1941 15 1951 07 General Purpose AC Voltmeter 10Hz to 1MHz - 5mV to 300V FS in 9 Ranges
400C AC 1950 18 - Wide Range AC Voltmeter 20Hz to 2MHz - 100uV to 300V in 12 Ranges
400D AC 1954 2 1954 05 Analog AC Voltmeter 10Hz to 4MHz - 1mV to 300V FS in 12 Ranges - 2% Accuracy
400EL AC 1965 120 1966 01 Analog Logarithmic AC Voltmeter - 10Hz to 10MHz - 1mV to 300V rms in 12 Ranges
400F RF 1966 SF - Analog AC Voltmeter - 20Hz to 4MHz - 100mV to 300V rms FS
403A AC 1960 59 - Analog AC Voltmeter - 1Hz to 1MHz - 100µV to 300V rms in 12 Ranges
403B AC 1963 92 - Analog AC Voltmeter - 5Hz to 2MHz - 100µV to 300V rms in 12 Ranges
410A VHF 1945 30 - Analog Multimeter - 20Hz to 700MHz - 1V to 300V in 6 Ranges AC + 1000V DC - Ohms ,2 to 500M
410B ACDC 1952 36 1950 11 Analog Multimeter - DCV 1 to 1000V FS - ACV 1 to 300V up to 700MHz with Probe
410C ACDC 1963 95 1963 05 Analog Multimeter - DCV-DCI-ACV-OHMS -
411A UHF 1961 74 1960 09 RF Millivoltmeter 0,5 to 1000MHz - 10mV to 10V FS in 7 Ranges
412A DC 1959 57 1959 07 Analog Multimeter - DCV-DCI-OHMS - 1mV to 1000V FS in 13 Ranges
414A DC 1965 130 1965 09 "AutoVoltmeter" DC 5mV to 1500V - 5Ohms to 1,5MOhms in 12 Auto-Changing Ranges
419A DC 1965 132 1966 03 DC Null Meter +/- 3uV to +/- 1000V in 18 Ranges - 0,5uV/Day Drift
427A ACDC 1966 5 1966 05 Analog Multimeter - DCV +/- 100mV to 1000V FS - ACV up to 1MHz - Ohms
428A DC 1959 62 1958 06 Clip-On DC Milliammeter 3mA to 1A FS in 6 Ranges - Accuracy 3%
428B DC 1961 80 1961 11 Clip-On DC Milliammeter 1mA to 10A FS in 9 Ranges - Accuracy 3%
4328A DC 1968 218 - MilliOhmmeter - 1 milliohm to 100 Ohms FS in 11 Ranges - 20 uOhms Max Sensitivity
4329A DC 1969 223 - High Resistance Meter 500K to 2x10+16 Ohms - Current Measurement down to ,05pA
450A AC 1948 34 - General Purpose Amplifier 10Hz to 1MHz - 20 or 40dB Gain - Increase Sensitivity of 400A AVM
735A DC 1965 131 1966 03 DC Transfer Standard - 1Volt Ref DC Output at ,5 ppm/month - 0 to 1000uV adjustable
740B DC 1966 SF 1965 05(A) DC Standard & Null Meter - 0 to 1000V in 4 decades ,002% Accuracy - 5 Digits NIXI
745A AC 1968 186 1968 06 AC Calibrator 10Hz to 110kHz - 0,1mV to 100V in 1nV Steps - Absolute Accurracy 0,02%
746A AC 1970 160 1970 05 High Voltage Amplifier - Add a 1000V Range to the 745A AC Calibrator
7562A ACDC 1968 134 - Logarithmic Converter 80 dB Dynamic - 1mV to 10V - Output 10mV/dB - True RMS

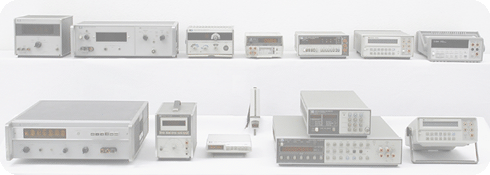

Digital Voltmeters - Multimeters & Calibrators
MODEL RANGE INTRO Pg HP-JRNAL COMMENTS
2401C DC 1967 226 1963 05 Integrating DVM - 6 Digit NIXI Display - 100mV to 1000V Full Scale (was the DYMEC Model DY-2401 since 1961)
3403C VHF 1973 75 1972 03 DVM True RMS DC & 2Hz to 100MHz - 3 1/2 digit - dBm & dB Ref.
3430A DC 1966 SF - DVM 3 Digit NIXI Display - 100mV to 1000V Full Scale - 0,1% Accuracy
3437A ACDC 1977 60 1977 02 DVM High Speed 3 1/2 digit
3438A ACDC 1978 56 - DMM 3 1/2 digit DCV-ACV-DCI-ACI-OHMS
34401A ACDC 1992 168 - DMM 6 1/2 digit - 11 Functions - 20ppm DC Accuracy - 1000 Reading/s
3440A NA 1964 6 1963 11 DVM Mainframe for 34XX Drawers - 5 Digits NIXI Display
3444A DC 1964 6 - DC Multi-Function Plug-in for 3440A - DCV-DCI-OHMS - 10 to 1000V
3450B ACDC 1969 241 1969 03 DMM 5 digit DCV-ACV-OHMS - 100mV to 1000V FS in DCV - True RMS 45Hz to 1MHz ACV BW
3455A ACDC 1977 62 1977 02 DVM High Res. 6 1/2 digit AC-DC-OHMS - Math Function
3456A ACDC 1981 68 1981 04 DVM High Res. 6 1/2 digit AC-DC-OHMS - 100nV Res. Up to 330 reading/s - Math Function
3457A ACDC 1986 205 - DMM 6 1/2 digit DCV-DCI-ACV-ACI-OHMS-Freq-Period - 10nV DC Sensitivity - 1350 Reading/s at 3 1/2 Dig.
3460A DC 1965? 146 1965 08 DVM 6 Digits NIXI Display - +/- 1, 10, 100, 1000 VDC - Ohms - ,004% accuracy
3465A ACDC 1976 38 1977 02 DMM 4 1/2 digit DCV-DCI-ACV-ACI-OHMS - 1uV DC & 10uV AC Sensitivities
3467A ACDC 1979 64 1978 12 Logging Digital Multimeter 4 1/2 digit - 4 Chan. Scanner -DCV-ACV-OHMS-Math Function - Printer & Timer
3468A ACDC 1983 66 1983 02 DMM 5 1/2 digit DCV-DCI-ACV-OHMS
3469B ACDC 1973 61 - DMM 3 1/2 digit DCV-DCI-ACV-OHMS
34703A ACDC 1975 40 1973 03 DVM Module for Snap-On 34740A Display - Measur AC-DC & Ohms
34740A NA 1975 40 1972 08 Snap-On DVM Display Module 4 1/2 digit for 34700 Series Measurmt. System
3476A ACDC 1977 50 1977 02 Digital Multimeter 3 1/2 digit - DCV-DCI-ACV-ACI-OHMS
3478A ACDC 1983 72 1983 02 DMM 5 1/2 digit DCV-ACV-DCI-ACI-OHMS
3490A ACDC 1973 90 1972 08 DMM 5 digit DCV-ACV-OHMS - 100mV to 1000V FS in DCV 1uV Resolution - 250kHz ACV BW
405AR DC 1959 56 1959 01 DVM 3 Digit NIXI Display - ,001 to 999 Volt - Automatic Range & Polarity Selection
405BR DC 1961 72 - DVM 3 Digit NIXI Display - ,001 to 999 Volt - Automatic Range & Polarity Selection
4140B DC 1981 106 1979 12(A) Combined PicoAmpMeter & DC Voltage Source +/- 100V - 3 Basic Semiconductor Measrmt:I, I-V & C-V
61013A ACDC 1986 195 1986 05 PC Instrument DVM - 200mV to 200V DC or AC RMS - 200 Ohms to 20MOhms - 4 1/2 Digits
970A ACDC 1975 36 1973 11 Probe Digital Multimeter 3 1/2 digit - DCV-ACV-OHMS - Battery Powered
E1411B ACDC 1990 599 - VXI C-Size Module - 5 1/2 Digits DCV-ACV-OHMS

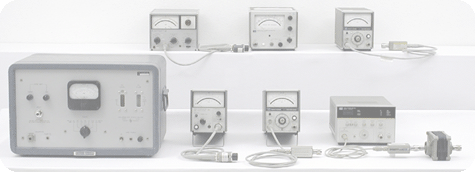

Power Meters - Bolometers & Probes
MODEL RANGE INTRO Pg HP-JRNAL COMMENTS
430B MW 1952 79 1951 03 MicroWave Power Meter -10 to +10 dBm - Work with 476A 10 MHZ to 1GHz or 475B 1 to 4 GHz Bolometer
430C MW 1955 91 1955 03 Microwave Power Meter ,01 to 10mW - 10MHz to 10GHz with 477B Thermistor Mount
431C MW 1966 36 - Analog Power Meter 10MHz to 10GHz with 478A Thermistor - 10uW to 10mW FS
432A MW 1969 286 - Analog Power Meter for 478A 8478B & 486 Series Thermistor
434A MW 1958 11 1958 08 Calorimetric Power Meter DC to 12,4 GHz - 10mW to 10W FS in 7 Ranges
435A MW 1973 371 1974 09 Analog Power Meter for 848XX Probes - Int. Ref: 50MHz 1mW@0,7%
435B MW 1981 431 - Analog Power Meter for 848XX Probes - Int. Ref: 50MHz 1mW@0,7%
436A MW 1976 370 1975 10 Digital Power Meter for 848XX Probes - Watts, dBm, dB Relative, modes
437B MW 1989 209 - Digital Power Meter for 84XX Probes - AutoCal - Resolution up to ,001dB
475A MW 1950 49 1950 05 Tunable Bolometer Mount - 300 to 1000MHz - 0,1mW to 10mW FS with 430A Power Meter
478A MW 1964 26 1961 06 Thermistor Power Sensor for 431-432 PWM - 10MHz to 10GHz
70100A MW 1989 209 - MMS 1 slot Power Meter Module - Equivalent to 437B - Work with 848XX Power Sensors
8481A MW 1973 371 1974 09 Thermistor Power Sensor for 435-436 PWM - 10 MHz to 18 GHZ - 3 µW to 100 mW
8481B MW 1979 422 - High Power Sensor for 435-436 PWM - 10MHz to 18GHz -1mW to 25Watts
8482A MW 1973 371 1974 09 Thermistor Power Sensor for 435-436 PWM - 100kHz to 4,2GHz - 3 µW to 100 mW
8900B MW 1964 28 - Peak Power Calibrator 50 to 2000MHz - 200mW Peak FS
