Data Recording, Acquisition Systems, X-Y Recorders, Plotters, HP-IB

small logo

Categories:

hpib

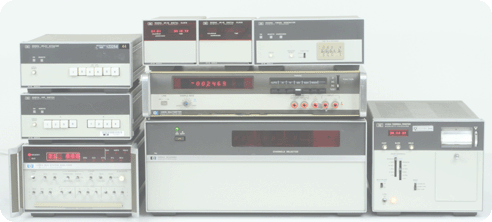

Data Acquisition & Recording - HPIB Accessories
MODEL RANGE INTRO Pg HP-JRNAL COMMENTS
3054A ACDC 1981 79 1981 07 Automatic Data Acquisition Control System - Consist of 3455+3437+3497+HP85A
3421A ACDC 1983 42 1983 02 Data Acquisition Control Unit up to 56 Channels - 5 1/2 digit A/D Converter
3488A NA 1984 60 - HPIB Switch Box for Data Acquisition & Test Control - Options Define Configurations
34970A ACDC 1998 149 - Data Acquisition / Switch Unit - Mainframe for 34900 Series Switch & Acquisit. Cards
3497A ACDC 1981 84 1981 07 Data Acquisition / Switch Unit - Mainframe for 444XX Series Measurement Cards
37203A NA 1981 33 - HPIB Bus Extender up to 1000m Coaxial or Optical Fiber (Opt 001)
3852A NA 1986 300 - Data Acquisition and Control System Cardcage Mainframe for 44700 Series Data Acquisition Plug-in
3964A ACDC 1977 230 - Instrumentation Tape Recorder 4 Channels FM or Direct Recording 50 to 64000Hz - 1,19 to 30,1 cm/s
44470A ACDC 1984 60 - 10 Channel Relay Multiplexer Module for HP 3488A, HPIB Switch Box
44471A ACDC 1984 60 - 10 Channel General Purpose Relay Module for HP 3488A, HPIB Switch Box
44473A ACDC 1984 60 - 4x4 Matrix Switch Module for HP 3488A, HPIB Switch Box
44701A ACDC 1986 302 - 5 1/2 Digit Integrating Voltmeter - AC DC 30mV to 300V FS in 5 Ranges - 30Ohms to 3MOhms in 6 Ranges - for 3852A Mainframe Controller
44702A DC 1986 302 - 13 Bit High Speed Voltmeter DC V, I & Ohms 2 or 4-wire Autoranging up to 100,000 Reading/sec - for 3852A Mainframe Controller
44708A ACDC 1986 303 - 20 Channel Relay Multiplexer - Scan Speed up to 450 Channels/sec - for 3852A Mainframe Controller
44713A ACDC 1986 303 - 24 Channel High Speed FET Multiplexer - up to 100,000 Scans and Measures/sec with 44702A Voltmeter - for 3852A Mainframe Controller
44714A ACDC 1988 564 - 3 Channel Stepper Motor Controller - for 3852A Mainframe Controller
44721A NA 1986 304 - 16 Channel Digital Input with Totalize and Interrupt - for 3852A Mainframe Controller
44723A NA 1988 565 - 32 Channel High Speed Digital Sense/Control - for 3852A Mainframe Controller
44727A DC 1986 304 - 4 Channel Voltage Digital to Analog Converter 0 to 10,235 Vdc Output - 75 ms Settling Time - for 3852A Mainframe Controller
44729A AC 1986 304 - 8 Channel AC Power Controller - Switch 2,5Amp Max per Channel - for 3852A Mainframe Controller
5150A NA 1975 246 1975 01 Alphanumeric 20 Column Thermal Printer With Clock for Time Stamp
560A NA 1957 74 1957 03 Digital Recorder for Freq. Counter - Print 11-Digit at Rates of 5 Lines/s
59301A NA 1975 257 - ASCII to Parallel Converter
59303A NA 1975 257 1975 01 Digital to Analog Converter - Convert 3 digits to DCV +/-9,99V
59306A NA 1975 257 1975 01 HPIB Relay Actuator - 6 ON/OFF Contacts 24VDC or 115 VAC@,5A
59307A NA 1975 257 1975 01 HPIB VHF Switch - 2x4 pole DC to 500MHz 50Ohms
59308A RF 1975 257 1975 01 HPIB Timing Generator - 1us to 1 Day Timing Source Pulse for Peripheral Time Stamp-----
59313A DC 1977 26 - Analog to Digital Converter - 4 Channels +/- 10V DC Converted to HPIB Datas
59401A NA 1976 516 1975 01 HPIB Bus System Analyzer
59401A NA 1976 516 1975 01 HPIB Bus System Analyzer
61011A NA 1986 195 1986 05 PC Instrument Relay Multiplexer - 8 Channels - Used as Scanner with 61013 DVM or Other PC Instruments
E1368A MW 1990 602 - VXI C-Size Module - Microwave Switch & Driver, 3 SPDT 50 Ohms, DC to 18GHz
xy

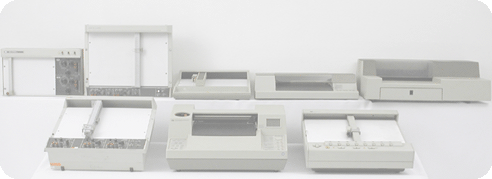

X-Y Recorders
MODEL RANGE INTRO Pg HP-JRNAL COMMENTS
7015B DC 1978 231 - XY Recorder - A4 Format - ,5 to 500mV/cm - Internal Time Base ,1 to 50s/cm
7035B DC 1968 120 - XY Recorder - A4 Format - 1mV to 10V/inch on each Axis
7045A DC 1973 214 - XY Recorder - A3 Format - ,25mV/cm to 5V/cm on each Axis
7046A DC 1973 215 1975 02 X-Y1-Y2 Recorder - A3 Format 2 Pens - ,25mV/cm to 5V/cm on each Axis
7090A ACDC 1985 378 1986 01 Measurement Plotting System DC to 3kHz BW - 3 Channels Input - 12 bit Resolution-------



Plotters
MODEL RANGE INTRO Pg HP-JRNAL COMMENTS
7225B NA 1982 688 1979 02(A) HPGL 1 Pen Plotter - A4 Only - HPIB interface - 1rst Linear Motor Technology
7475A NA 1984 628 - HPGL 6 Pens Plotter - A3-A4 Formats - HPIB
7510A NA 1986 105 - HPGL Slides Recorder
7550A NA 1985 100 1985 04 HPGL 8 Pens Plotter - A3-A4 Formats HPIB & RS232 I/O
9862A NA 1973 484 - 1 Pen Plotter - A4 Only - Dedicated Interface for use with 9810/20/30 Calculators
9872C NA 1982 686 1977 09(A) HPGL 8 Pens Flat Bed Plotter - A3-A4 Formats - HPIB
9872T NA 1982 686 1977 09(A) Same as 9872C with Programmable Paper Roll Advance and Self Sharpening Cutter----
