The HP 204B Transistorized RC Oscillator
| Click-in for High-Resolution Display |
 |

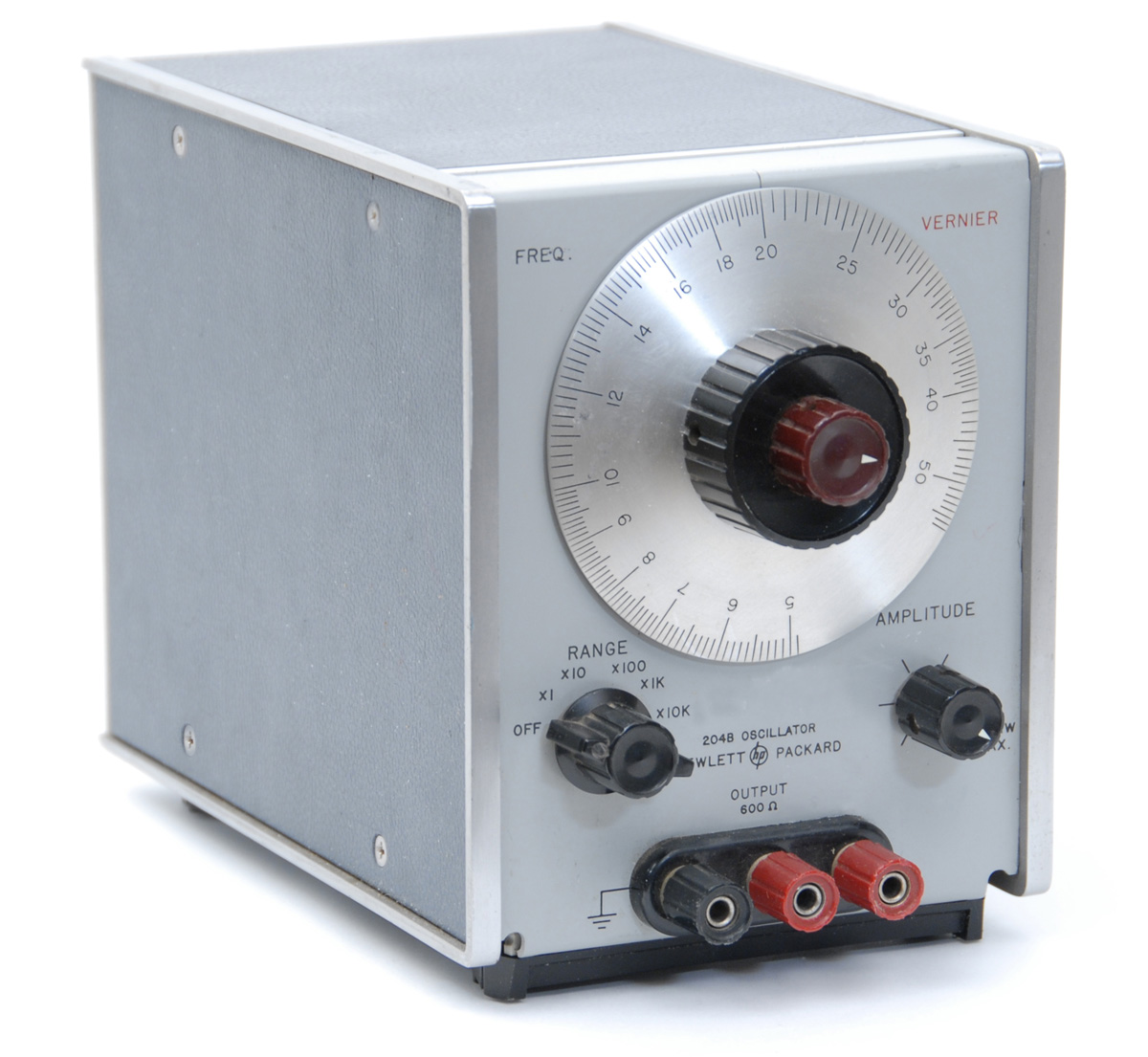

The HP204B Transistorized RC Oscillator |
| Click-in for High-Resolution Display |
 |

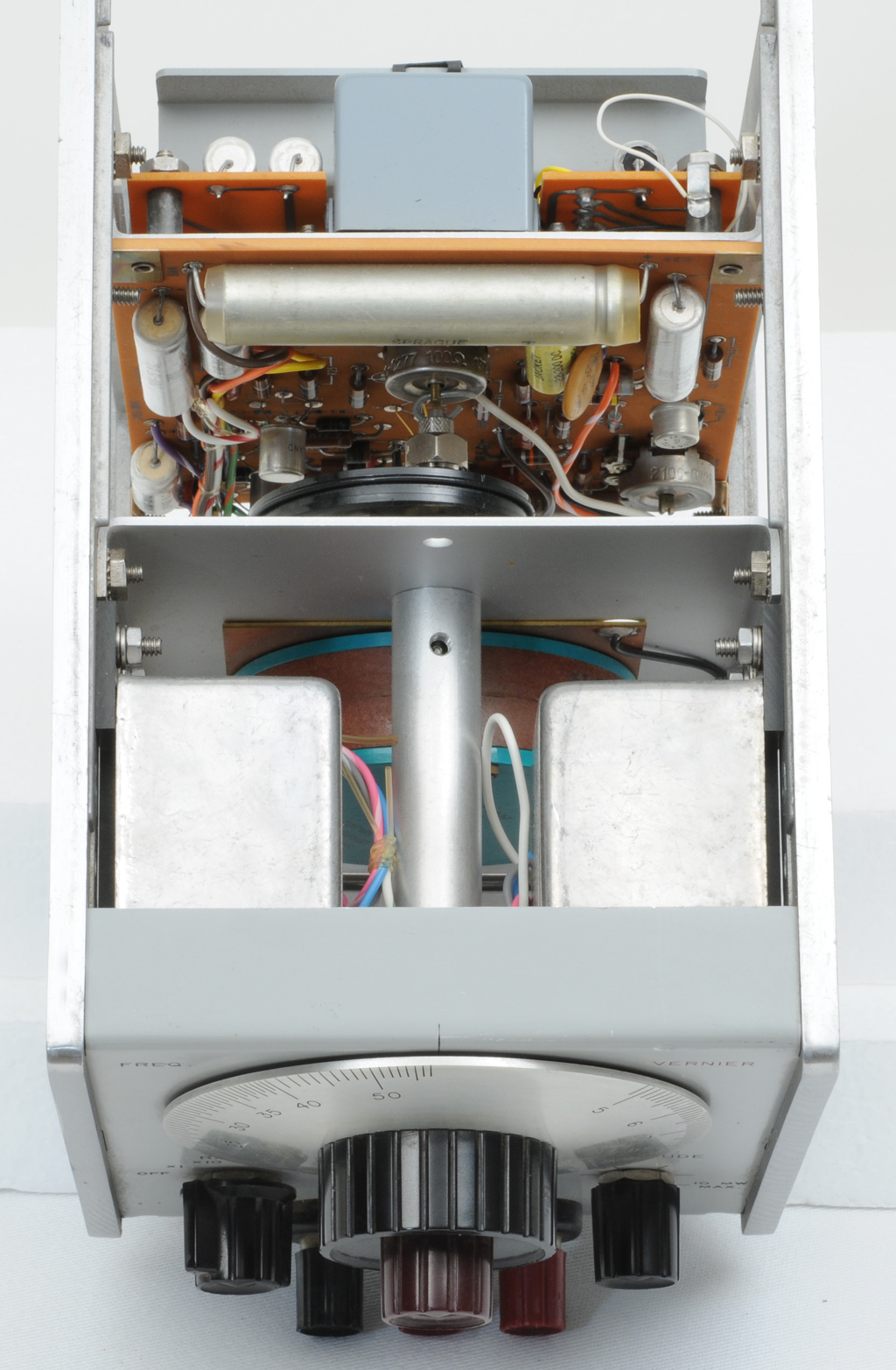

The HP204B Top View |
| Click-in for High-Resolution Display |
 |

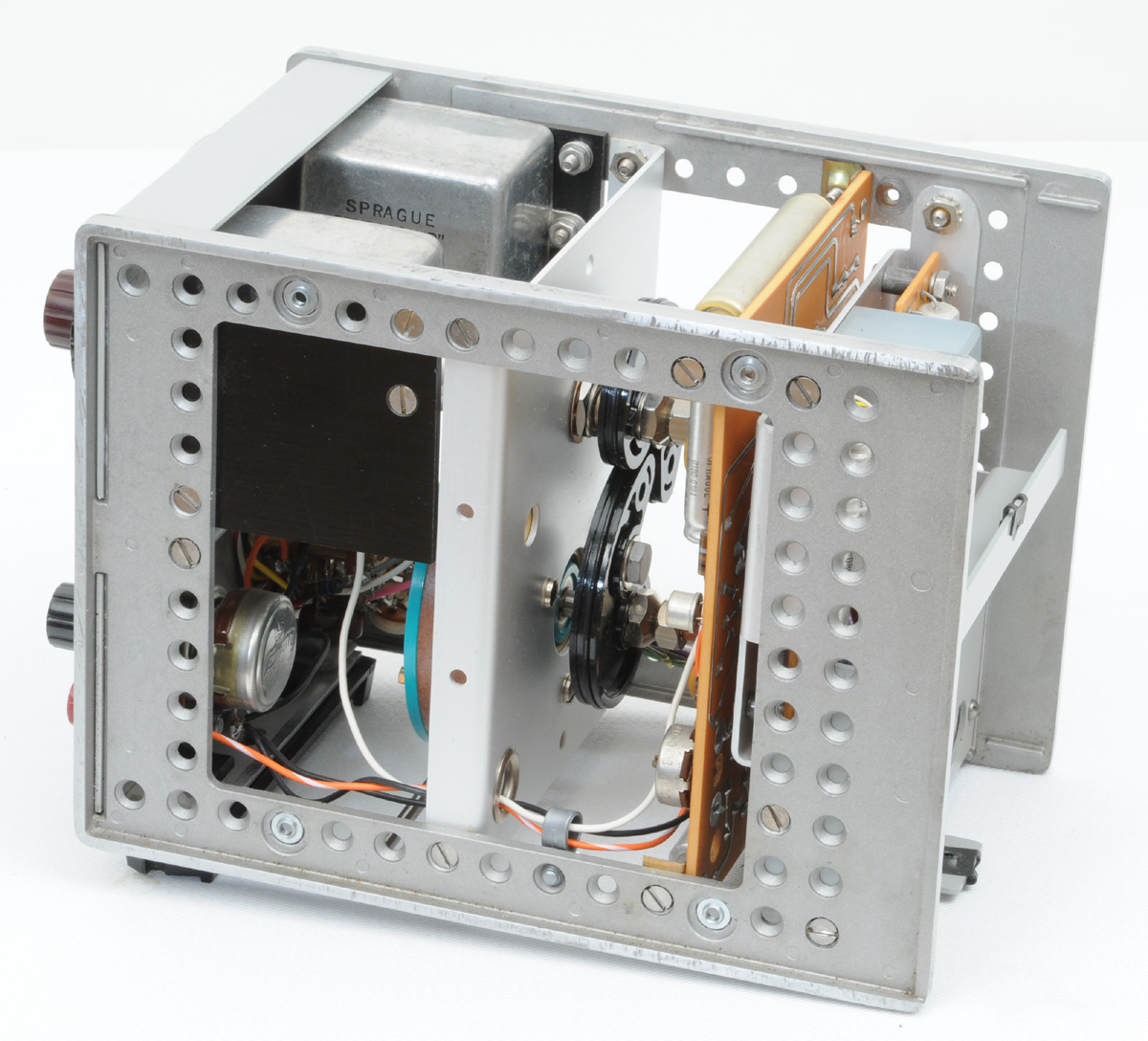

The HP204B Right View |
| Click-in for High-Resolution Display |
 |

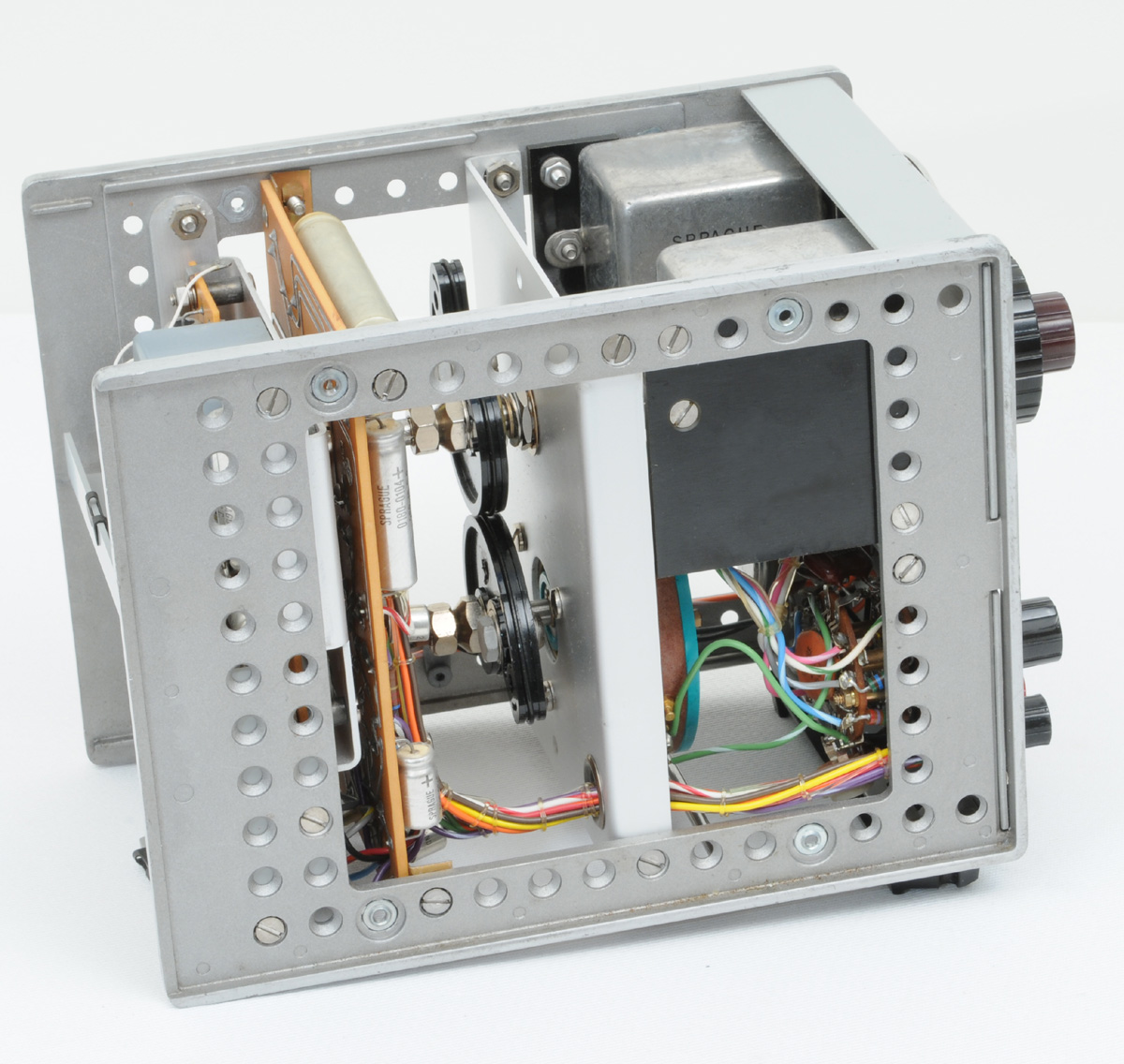

The HP204B Left View |

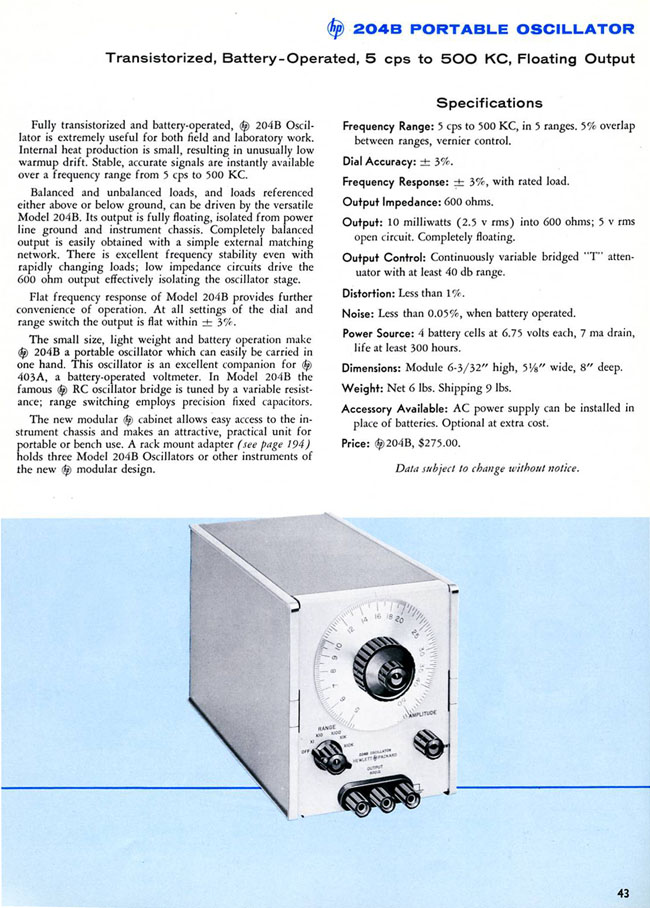

First Appearance of the Model 204B Transistorized RC Oscillator
in the 1961 Catalog
| Page 43 of the 1961 Catalog |
 |
