The HP AC-4A Decade Counters

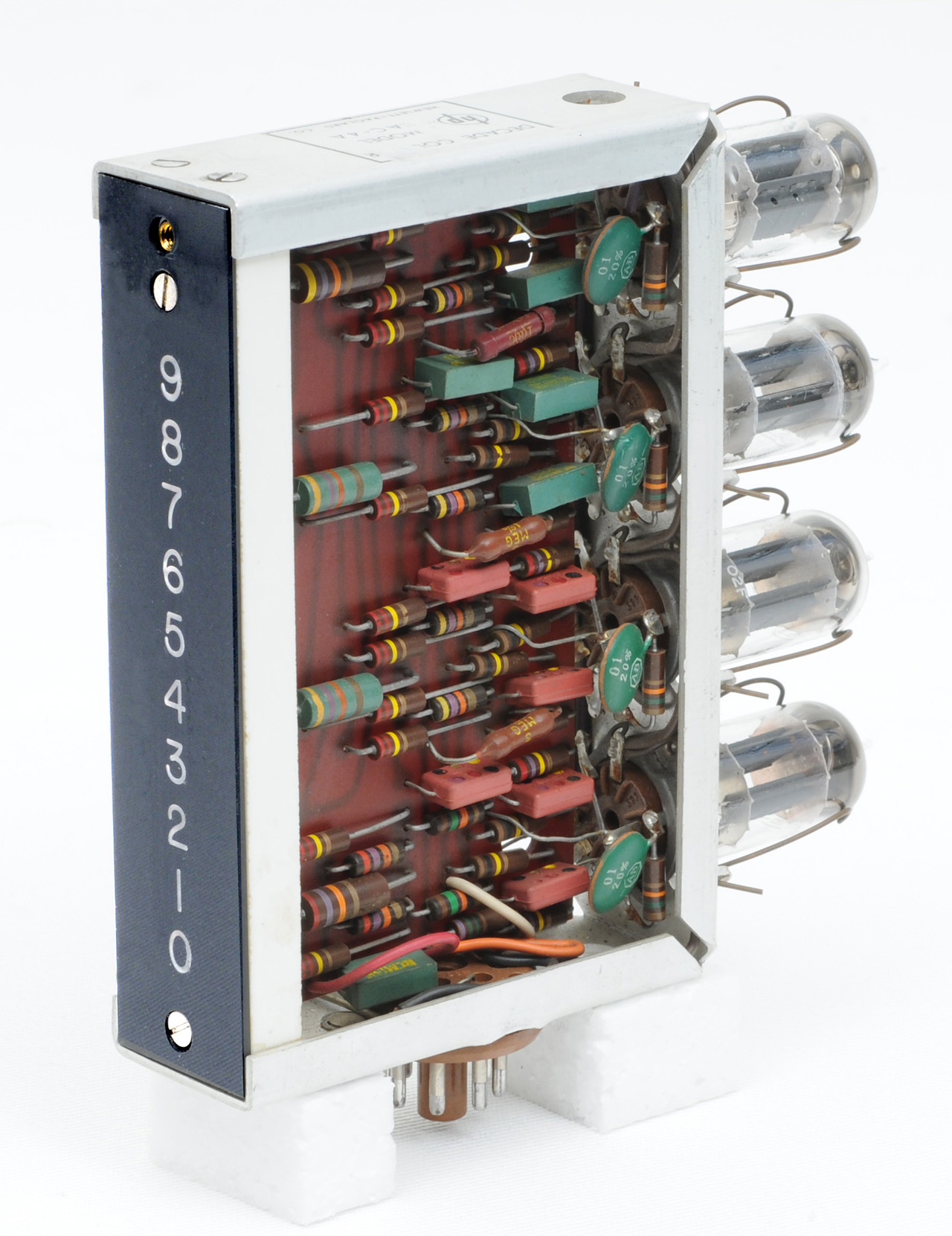

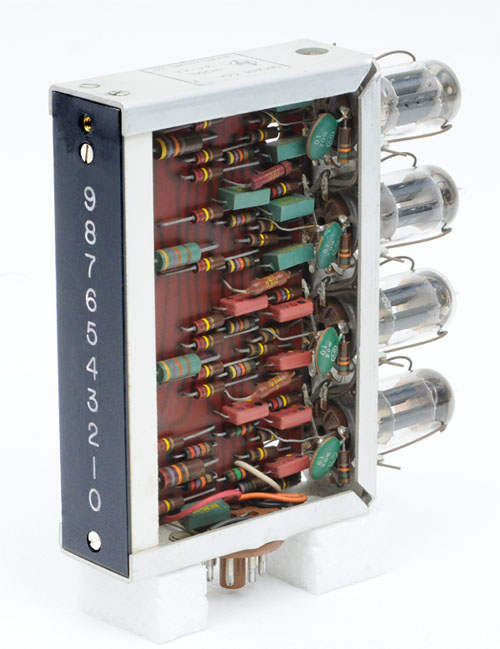

High Resolution Picture of the HP AC-4A
Click-Here for High-Resolution Display of this picture



A HP 521C Frequency Counter with Display Made of 5 x AC-4 Modules
Click-Here for High-Resolution Display of this picture

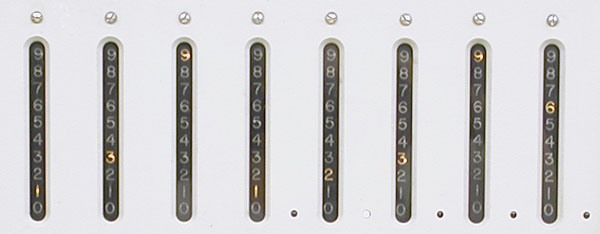

Closeup of a HP 524D Frequency Counter, measuring a 13,912,396 Hertz signal
The HP 524D Counter Display was Made of eight AC-4 Decade Counters



First Appearance of the AC-4A Decade Counters
in the 1955 Catalog

It is interesting to note that the AC-4 module is the first occurence of a sub-assembly of an instrument offered for sale by HP to their customers. Thus, the first HP OEM product.

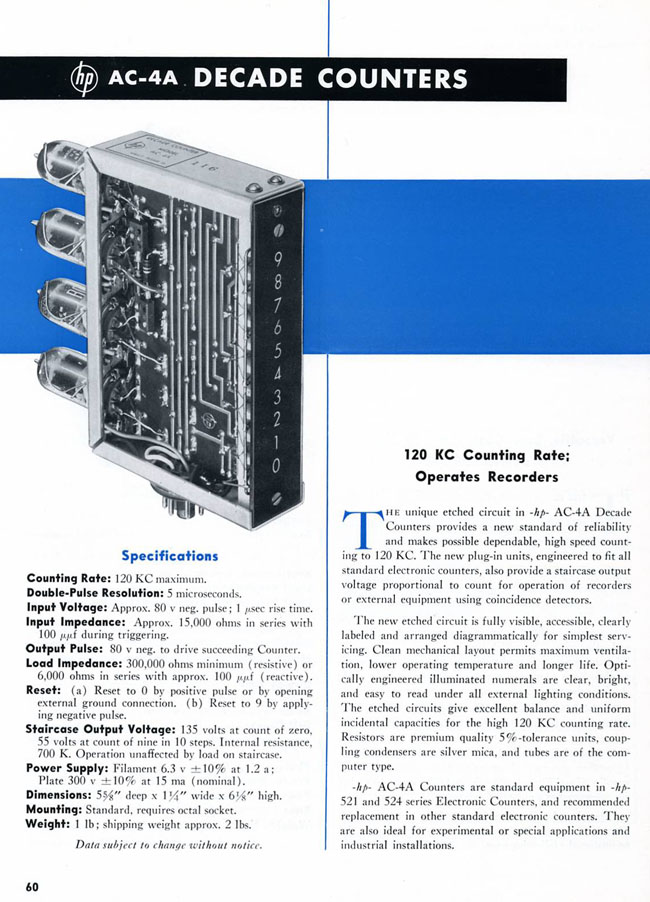

Page 60 of the 1955 Catalog
