The Model 614A & 616A

cover small logo













The HP Model 614A and 616A UHF Signal Generators

The Model 616A was the first Ultra High Frequency (1800 - 4000 MHz) signal generator manufactured by Hewlett Packard, following a previous US Navy design. It was introduced in the 1948 general catalog, and the Model 614A (800 - 2100 MHz), in the 1950 catalog. But both generators were described in the same May-June 1952 issue of the Hewlett Packard Journal.



hp616a

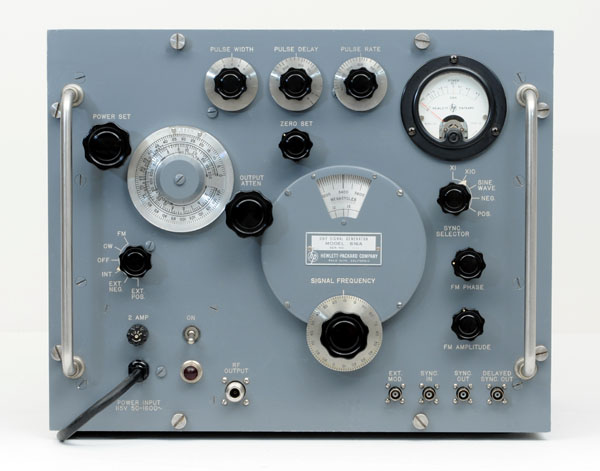

magThe HP 616A in the HP Memory Project Collection

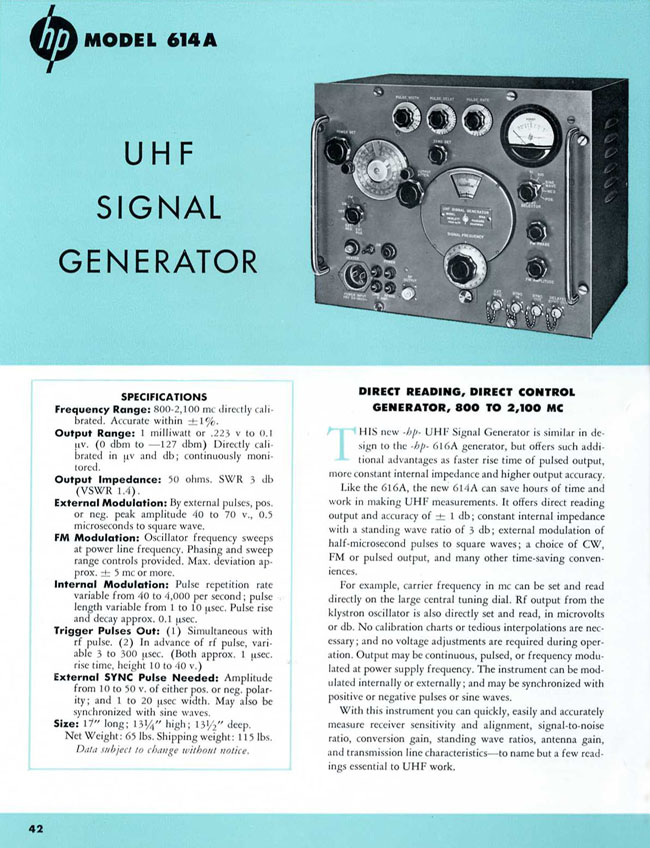

The Model 614A in the 1950 Catalog



Page 42 of the 1950 Catalog
Courtesy of the Hewlett Packard Company
cat50_pg42

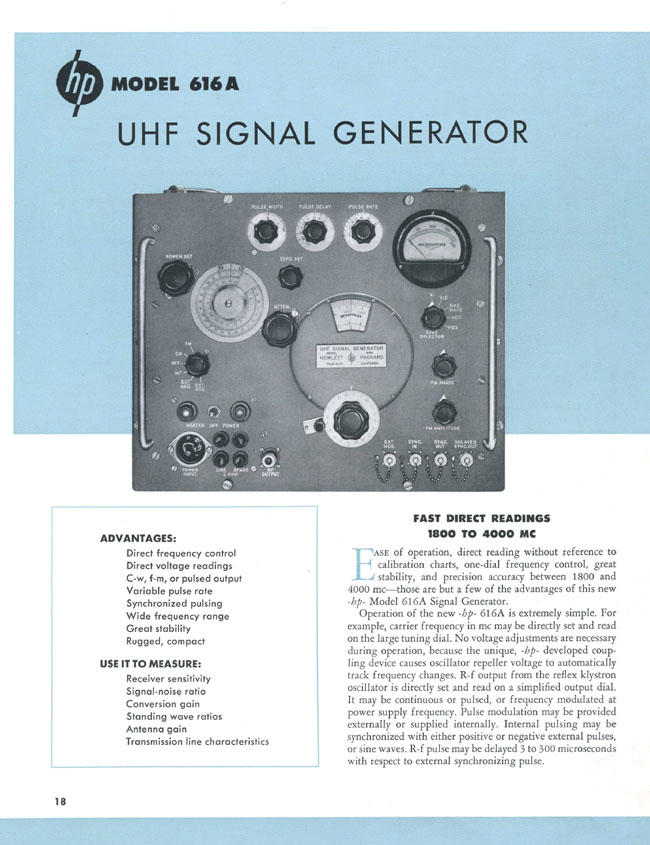

The Model 616A in the 1948 Catalog



Page 18 of the 1948 Catalog
Courtesy of the Hewlett Packard Company
cat48_pg18

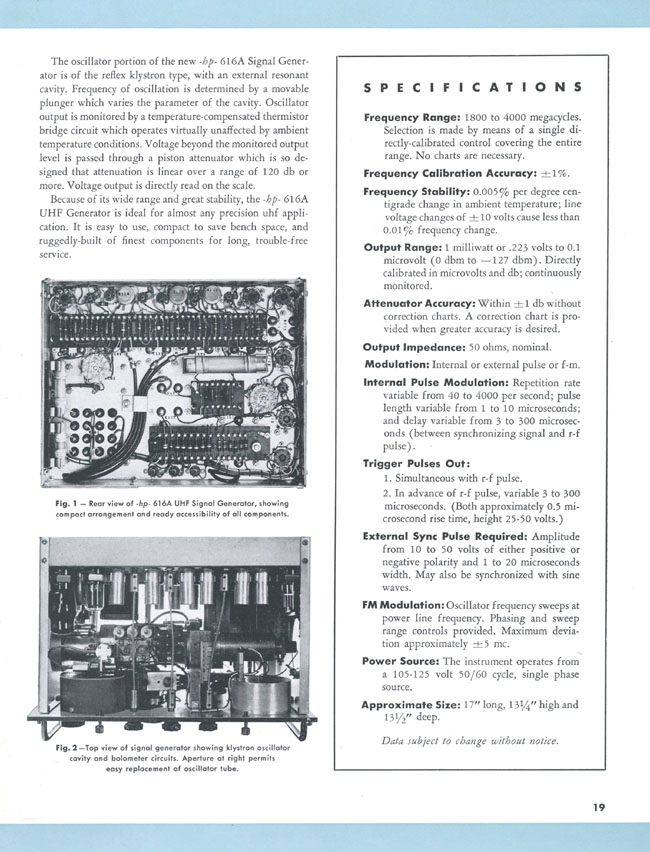

Page 19 of the 1948 Catalog
Courtesy of the Hewlett Packard Company
cat48_pg19

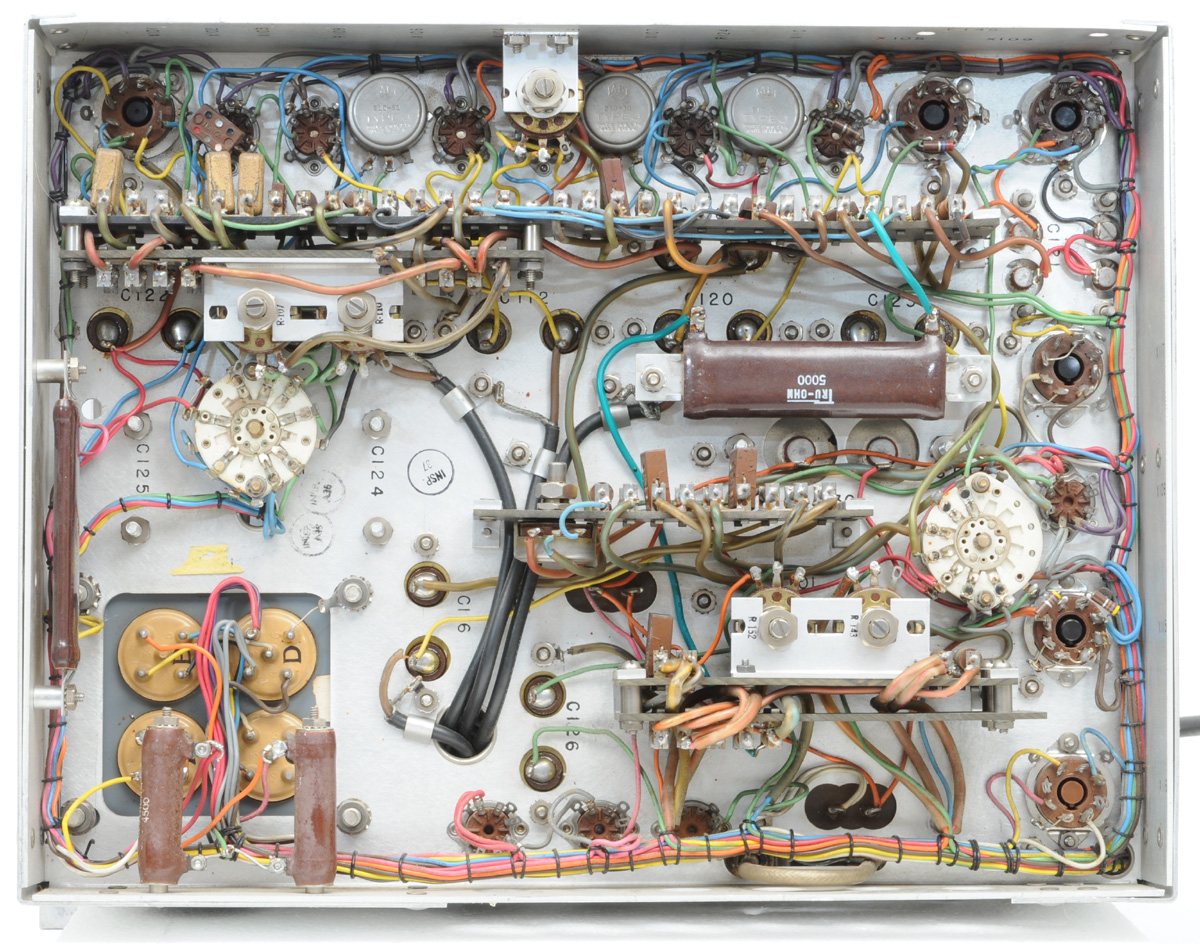

Inside View of the Model 616A



hp616a_in2

mag1The HP 616A - Inside View of Rear Chassis



hp616a_in1

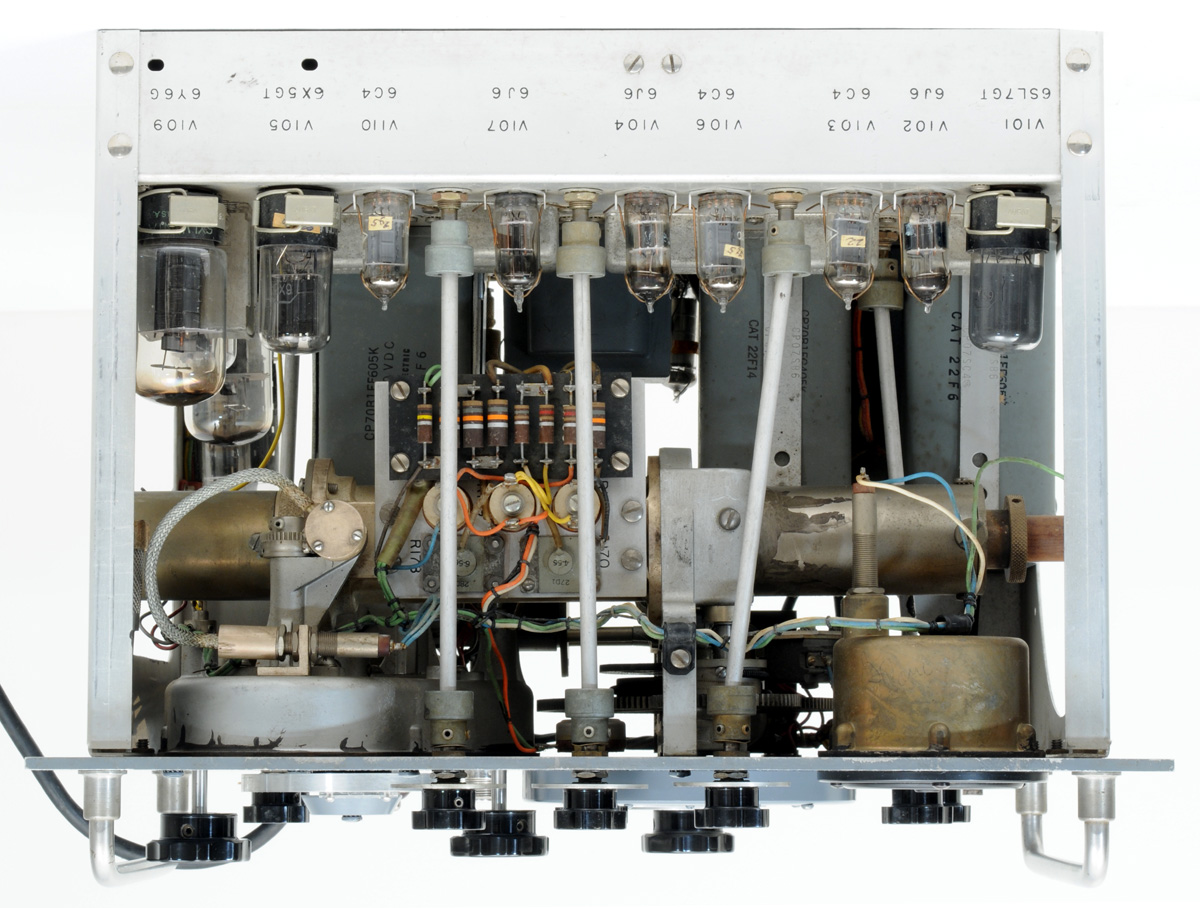

mag2The HP 616A - Top Inside View Showing Klystron Oscillator Cavity, and Bolometer Circuits
