3048A Phase Noise Test Set - Functional Check
HP 3048A Phase Noise - Functional Check - Configuration
Running the 3048 CAL Program to Display the Configuration in Use

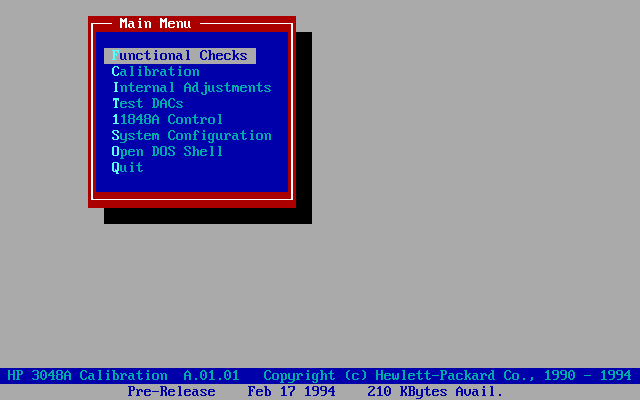

| HP 3048 Cal Program Main Menu |
 |

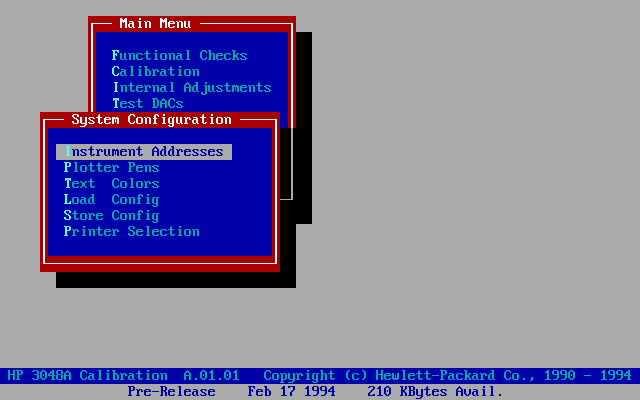

| HP 3048 Cal Program - Showing System Configuration in Use |
 |
| HP 3048 Cal Program - Showing Instrument Addresses |
 |
HP 3048A Phase Noise - Functional Check - Running the Tests

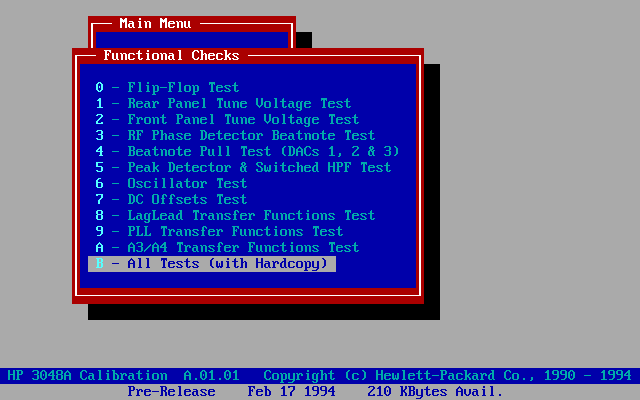

| HP 3048 Cal Program - Showing the Functional Tests Check List |
 |
| HP 3048 Cal Program - TEST 1 |
 |
| HP 3048 Cal Program - TEST 2 |
 |

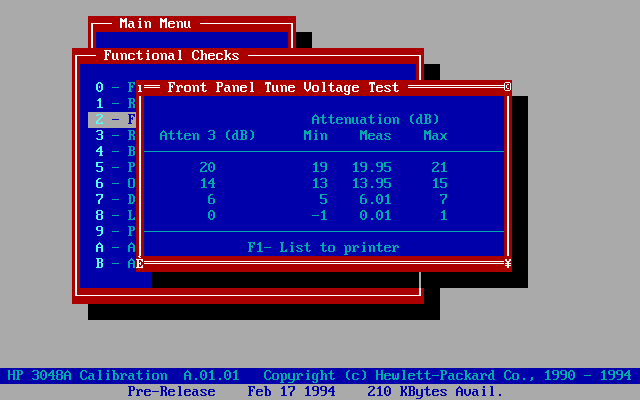

| HP 3048 Cal Program - TEST 3 |
 |

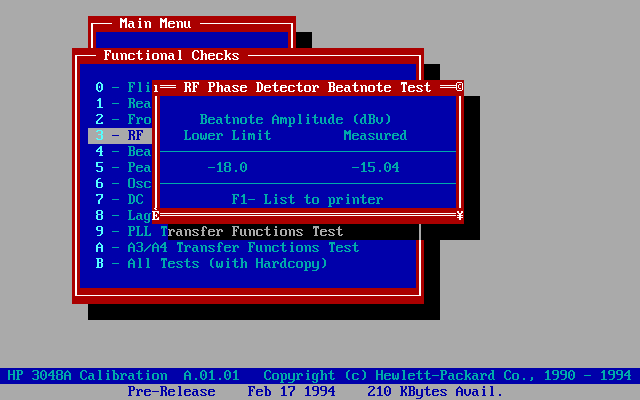

| HP 3048 Cal Program - TEST 4 |
 |

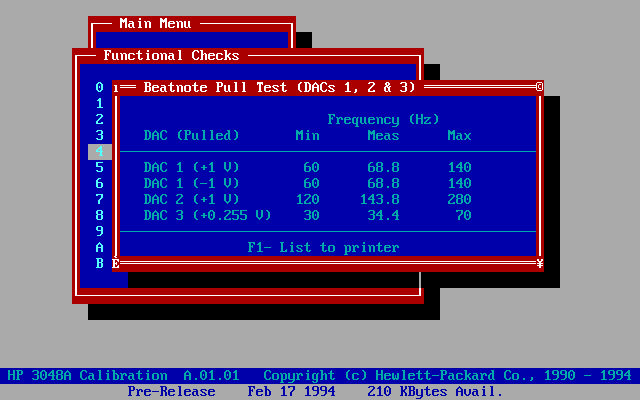

| HP 3048 Cal Program - TEST 5 |
 |

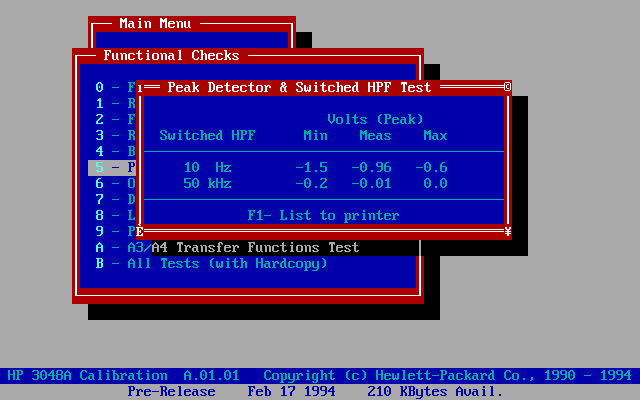

| HP 3048 Cal Program - TEST 6 |
 |
| HP 3048 Cal Program - TEST 7 |
 |
| HP 3048 Cal Program - TEST 8 |
 |

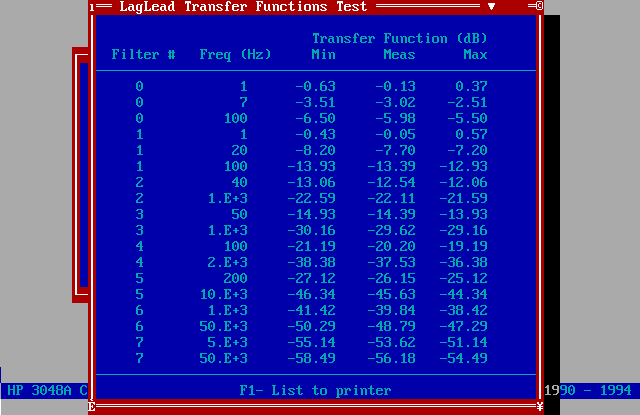

| HP 3048 Cal Program - TEST 9 |
 |

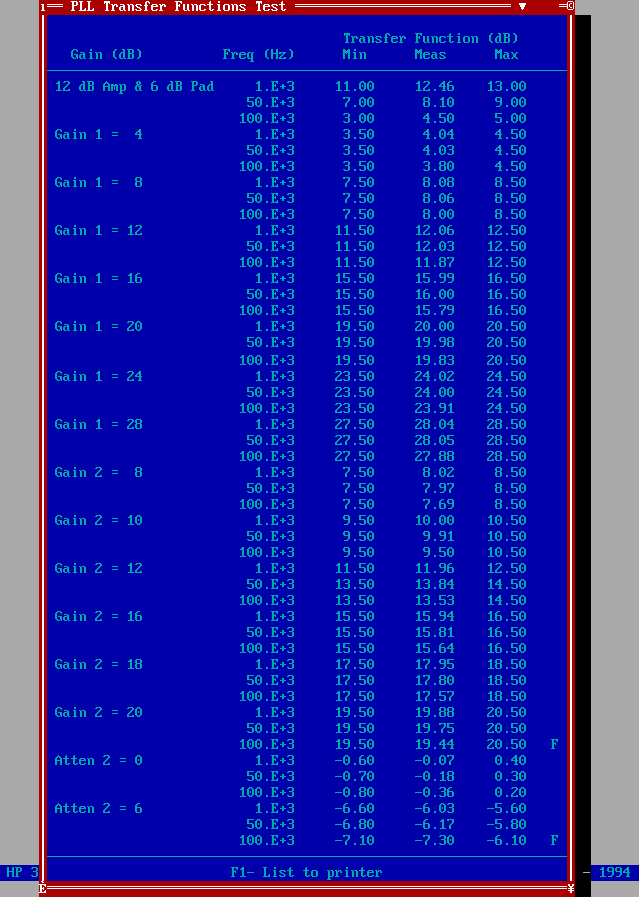

| HP 3048 Cal Program - TEST A |
 |
